HTW90

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

HTW90 series is GeMinG's new linear actuator designed for heavy-duty applications that require high lifting capacity and thrust up to 50KN. HTW90 provides GeMinG's well-known quality to ensure a long-life maintenance-free product. Complex applications require actuators with the same requirements. It is a very powerful actuator designed for various applications, such as agricultural machinery, construction machinery and industrial machinery. Due to its large capacity, well-designed and IP65 level protection, Chromium actuators are very suitable for agricultural, construction and industrial machinery and equipment. The biggest advantage; the stroke, installation length and product durability can be adjusted. The whole product all metal material does not contain any plastic parts...


Product Features


Motor type: high-performance brushless motor
Voltage: 24V DC, 36V DC, 48V DC, 110V DC, 220V DC
Maximum load: 50,000N/Limited to thrust
Maximum tension: 45,000N/tension
The fastest speed at full load: 50 mm / s (load 6,000N)
The slowest speed at full load: 5.5mm/s (load 50,000N)
Stroke: 50~900mm
Minimum size: stroke + 350 mm (limited to 500 mm stroke or less)
Minimum size: stroke + 400 mm (over 500 mm stroke or more)
Colour: Black
IP rating: IP66
Operating temperature range: -45°C~+75°C
Full performance operating temperature range: +5°C~+45°C
Higher duty cycle (25%)
Other options: Hall sensor, passive signal
High-strength metal zinc alloy housing protects motors and gears
Limit switch (built-in: not adjustable) (external-adjustable)
Product Data Sheet
HTW90 Series load ±10%(N) Speed ±2(mm/S)
Maximum load(N)
50,000 35,000 22,000 15,000 12,000 6,000
No-load speed(MM/S)
5.5  9.2  13.8 18.3 27.5 55
Load speed(MM/S)
4.8 8.3 12.5 16.7 24.8 50
HTW90 Series stroke ±2(mm) Retracted length ±2(mm)
Standard stroke(MM) 100 150 200 250 300 350 400 450 500
Retracted length(MM) 450 500 550 600 650 700 750 800 900
product weight(KG) 5.6 6.1 5.6 7.1 7.6 8.1 8.6 9.1 9.6

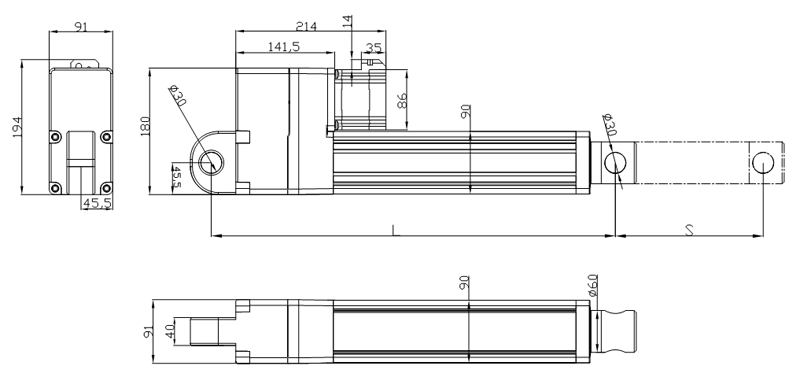

Drawings Standard size (mm)

S: Stroke
L: Retracted length

L=Stroke +350mm

Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator Linear actuator
Code selection HTW90-voltage - speed - stroke - minimum installation size / maximum installation size - load
