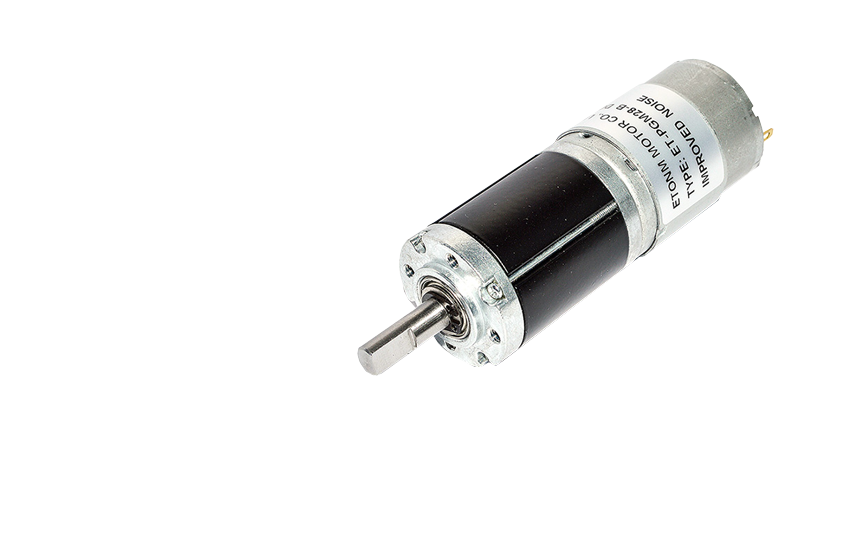

HTX45

Series

Deceleration motor

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

In modern industrial manufacturing and economic development, a large part has a certain relationship with the gear motor. In the geared motor, the application of the planetary reducer has an irreplaceable application. The chrome drive simply introduces the advantages of the planetary reducer. Uses; planetary reducer advantages: high precision, high rigidity, high load, rate, high speed ratio, high life, low inertia, low vibration, low noise, low temperature rise, beautiful appearance, light structure, easy installation, positioning, etc. Features, suitable for AC servo motor, DC servo motor, stepper motor, hydraulic motor speed increase and reduce drive. The transmission efficiency of planetary reducers is generally above 90%, and the application is very extensive...


The main purpose

  •  Automatic doors and windows,
  • Automatic curtains,
  • ATM ATM at the bank
  • Medical equipment
  • Furniture and industry


Motor unit data sheet

motor model

model

Rated voltage

V DC

No-load speed

R/MIN

No-load current

MA

Rated speed

R/MIN

Rated torque

G.CN

Output Power

W

Rated current

A

Stalling torque

G.CN

Stall current

A

395-12K

12

8000

200

6600

110

8.5

1.3

660

6.5

395-24K

24

8000

100

6800

110

8.5

0.6

670

3.2

Planetary geared motor data sheet

Model Reduction ratio 1:3.7 1:5.2
1:14 1:19
1:27 1:51
1:71 1:100 1:139
1:189 1:264
1:369
1:515
1:721

No-load speed

Rpm

2100

1500

560

410

280

150

105

78

55

41

30

21

15

10.5

Rated torque

Kg.cm

0.3

0.4

1.0

1.4

2.0

3.3

4.6

6.5

9.0

11

15

20

20

20

Rated speed

Rpm

1800

1300

500

360

250

135

95

69

50

37

26

18.6

13.8

10

Instant torque

Kg.cm

0.6

0.8

2.0

2.8

4.0

6.0

9.0

12

18

22

30

40

40

40


No-load speed

Rpm

2100

1500

560

410

280

150

105

78

55

41

30

21

15

10.5

Rated torque

Kg.cm

0.3

0.4

1.0

1.4

2.0

3.3

4.6

6.5

9.0

11

15

20

20

20

Rated speed

Rpm

1800

1300

500

360

250

135

95

69

50

37

26

18.6

13.8

10

Instant torque

Kg.cm

0.6

0.8

2.0

2.8

4.0

6.0

9.0

12

18

22

30

40

40

40

L(MM)

27.5

35.5

43.5

51.5

Swing gap

o

0.7

0.8

1.0

1.0

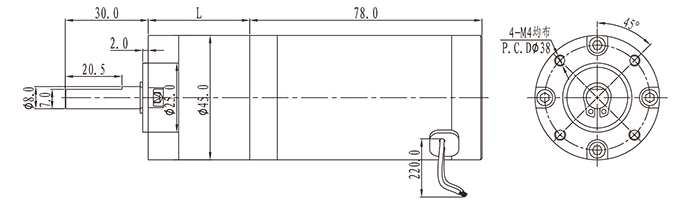

Drawings
