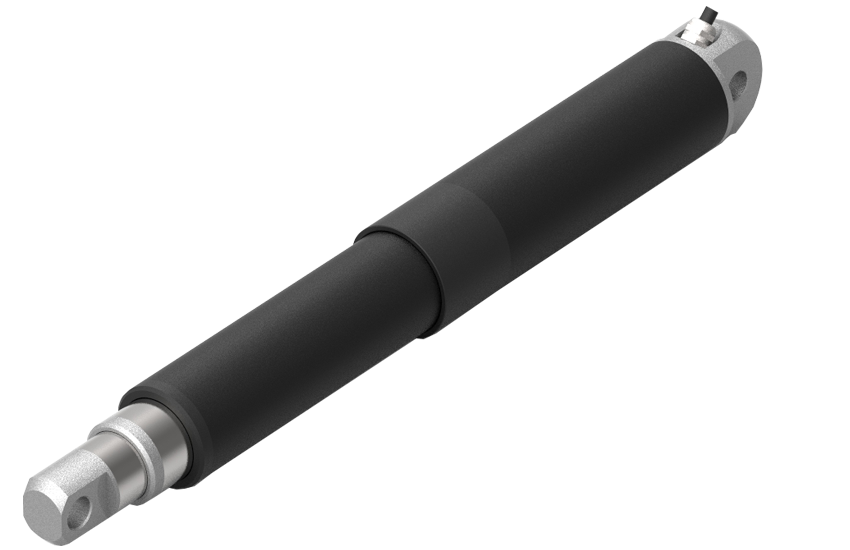

The HTK78 multi-segment linear actuator is one of GeMinG's most distinctive actuator products. It offers strong shock resistance and is suitable for use in harsh environments, including those subject to significant bumps and shock. The fully enclosed hydraulic system features precise drive and control, stroke adjustment, complex motion capabilities, a wide range of applications, customized services, and high-quality assurance. These features ensure broad application prospects for multi-segment actuators in various fields. Their stable quality and long service life make them widely used in various industrial automation equipment, construction vehicles, environmental protection, agricultural machinery, and other applications requiring drive support.
|
-
Working voltage: 24V DC, 48V DC
-
Motor type: brushless DC motor, permanent magnet DC motor
-
Maximum dynamic/maximum static load: 6,000/10,000N
-
Maximum speed at full load: 120.0 mm/s (load 500 N)
-
Slowest speed at full load: 7.0 mm/s (load 6,000N)
-
Stroke range: 500～3000MM
-
Minimum size: stroke /2+ 550MM
-
IP protection grade: IP65
-
Operating temperature range: -45°C ~ +75°C
-
Other options: Synchronous control, integrated control, CAN bus
-
Manual operation during power outage
|
