HTA23

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

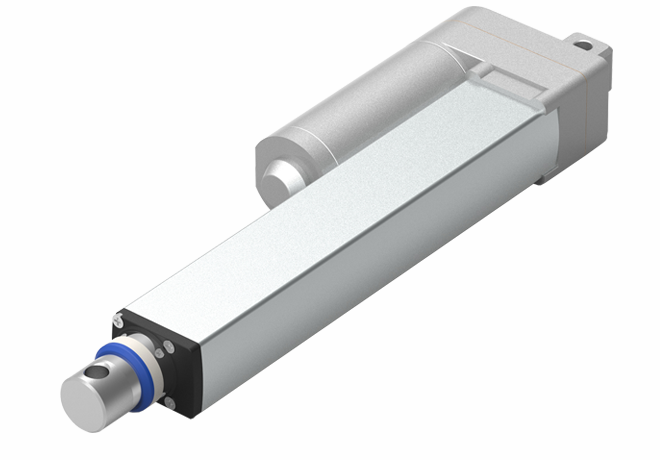

HTA23 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and

other windows automatic control, Application Design of actuators. The products are compact designs with a protection grade of IP68.

the TA Series linear actuator is One kind of power-driven device, its installation is not the terrain, Distance limitations, the ideal product to

replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate.



General Features


  • Voltage of motor: 12V DC, 24V DC 36V DC,
  • Maximum load: 1,500N in pull/push
  • Stroke: 200~1600mm
  • Minimum dimensions: Stroke /2 + 165 mm, Stroke/2+185(S>1000mm)
  • Color: black
  • IP rating: IP66
  • Noise level: 45dB
  • Operational temperature range: -40°C~+55°C
  • Operational temperature range at full performance: -40°C~+55°C
  • Higher duty cycle (25%),
  • Other options: Hall sensor
  • Built-in limit switches (not adjustable)

Model Selection










HTA23 Series Load±10%(N) Speed±2(mm/S)













Load 1,500 1,000 800 500(no self-locking) 400 200(no self-locking)


Speed 10 20 22 40 30 80








HTA23 Series Stroke ±2(mm) Mounting dimensions±2(mm)












Stroke 200 300 400 500 600 700 800 900 1000
Size 300 350 400 450 500 550 600 650 700
Note: stroke can be customized.


















Drawing Standard Dimension (mm)



Code selection:  HTA23 - voltage - speed - stroke - minimum installation size / maximum installation size - load
