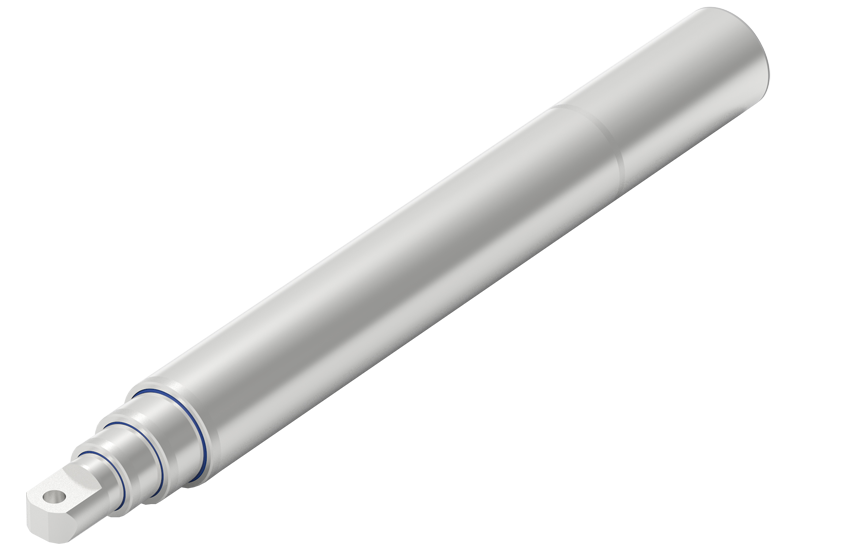

| GeMinG's multi-section electric actuator offers a wide height adjustment range, enabling ultra-long travel and lifting, easily accommodating high-rise cabinet access and large equipment maintenance, effectively expanding vertical operating space. Its flexible deployment and compact, lightweight design facilitate mobile platform installation in narrow spaces and adapt to complex terrain and environments. Its intelligent control system, equipped with an intelligent controller, supports one-touch height adjustment at preset heights, with millimeter-level positioning accuracy, meeting requirements for communication antenna angle calibration and precision instrument adjustment. Its strong load-bearing capacity, constructed of high-strength aluminum alloy or stainless steel, provides stable support for heavy equipment such as communication base stations and robotic arms, making it suitable for diverse scenarios. Its combination of horizontal push-pull and lifting functions, such as horizontal cargo position adjustment and vertical access, makes it suitable for diverse applications such as automated production lines, warehousing and logistics, and stage machinery. |
| Product Features |
|
Operating Voltage: 24V DC, 48V DC, 220V AC. Motor Type: DC Servo Motor, AC Servo Motor. Maximum Dynamic/Static Load: 6,000/15,000N. Maximum Speed at Full Load: 300.0 mm/s (Load: 500N). Minimum Speed at Full Load: 10.0 mm/s (Load: 6,000N). Stroke Range: 500 to 5000mm. Minimum Stroke: 3 + 800mm. IP Rating: IP67. Operating Temperature Range: -45°C to +75°C. Other Options: Synchronous Control, Integrated Control, CAN Bus, CAT Bus. Material Options: 304, 316L Stainless Steel, 6061-T6 Aluminum Alloy. |
