Lifting column

GeMinG, a Electric Telescopic lifting columns are best-suited for height adjustable office, industrial and medical equipment which require vertical movement. Our columns are made specifically for quiet and smooth movement in such manufactured products as desks and medical beds. See our full product listing below, and read on to learn more about telescoping linear actuators, benefits and applications, and why GeMinG is the best choice for these products.

Lifting column
Lifting column

HTE5 Lifting column

Number of sections: two sections, 180*65mm square
Maximum load: 3,000N (thrust)
Speed range: 4.2~23MM/S
Voltage range: 12-24V DC

Telescopic lifting column

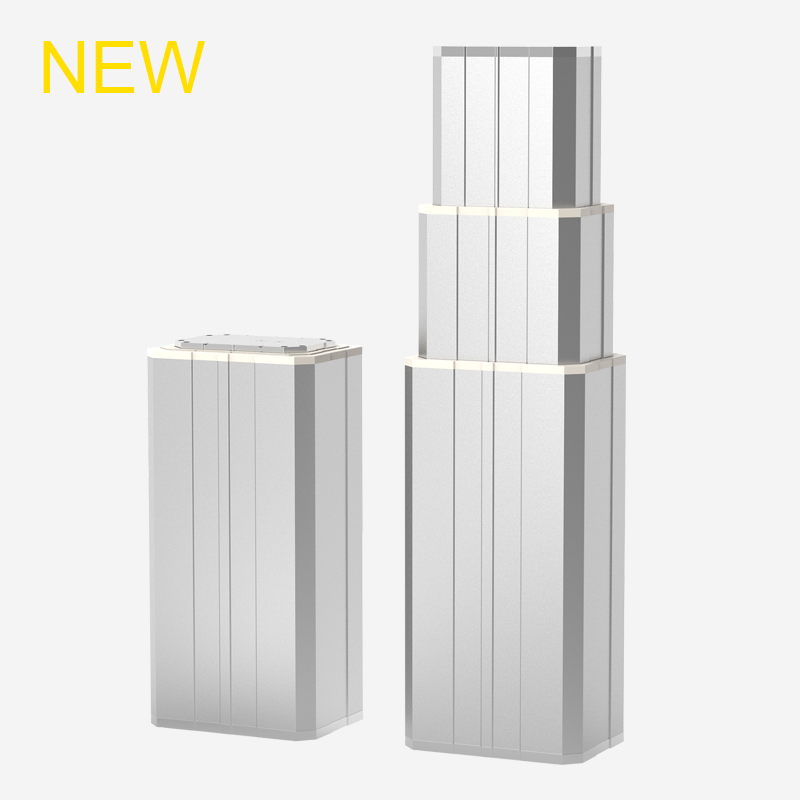

HTA3 Telescopic lifting column

Number of sections: three sections, 193*141mm rectangle
Maximum load: 10,000N (thrust)
Speed range: 4~190MM/S
Voltage range: 12-90V DC

Lifting column

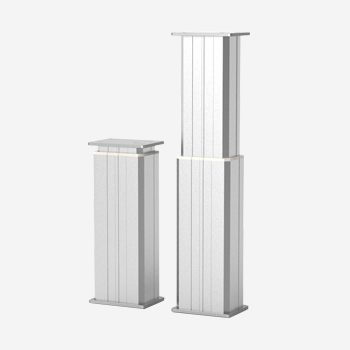

HTA2 Lifting column

Number of sections: two sections, 193*141mm rectangle
Maximum load: 8,000N (thrust)
Speed range: 4.2~23MM/S
Voltage range: 12-48V DC

Lifting column

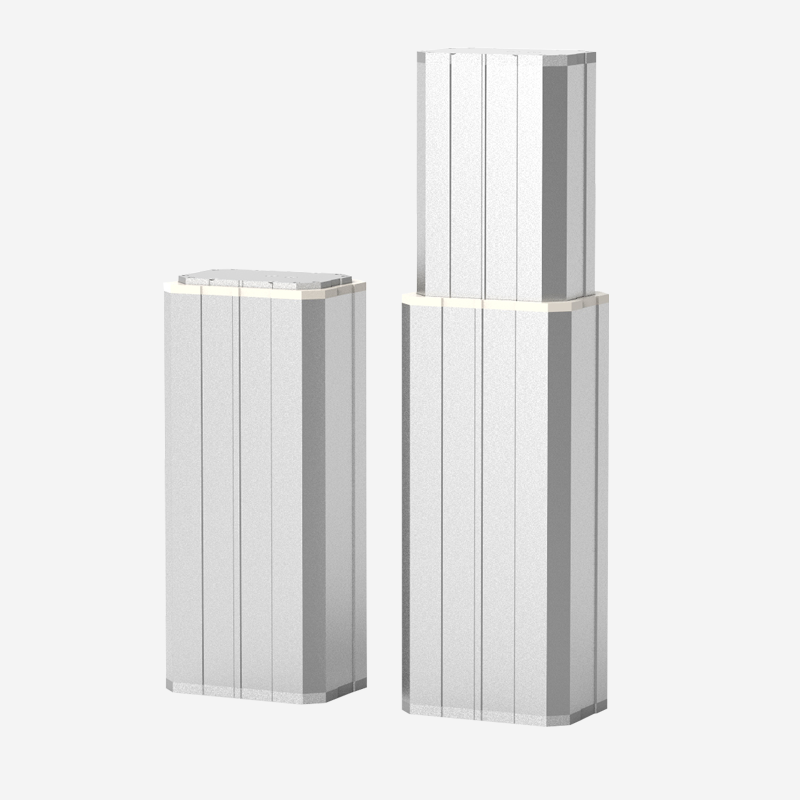

HTA1 Lifting column

Number of sections: two sections, 170*120mm rectangle
Maximum load: 8,000N (thrust)
Speed range: 4.2~23MM/S
Voltage range: 12-48V DC

Lifting column

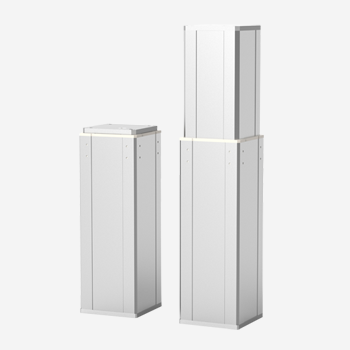

HTB2 Lifting column

Number of sections: two sections, 144*144mm square
Maximum load: 6,000N (thrust)
Speed range: 4.2~23MM/S
Voltage range: 12-24V DC

Lifting column

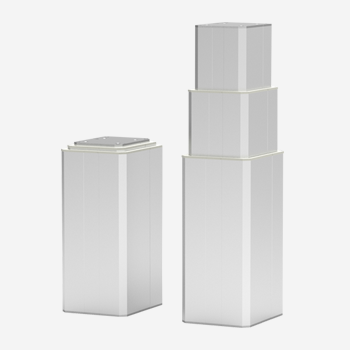

HTB3 Lifting column

Number of sections: three sections, 185*152mm rectangle
Maximum load: 2,000N (thrust)
Speed range: 17~35MM/S
Voltage range: 12-24V DC

Series Lifting column

HTX2 Series Lifting column

Number of sections: two sections, 100*100mm square
Maximum load: 1,500N (thrust)
Speed range: 4.2~23MM/S
Voltage range: 12-24V DC

Lifting column

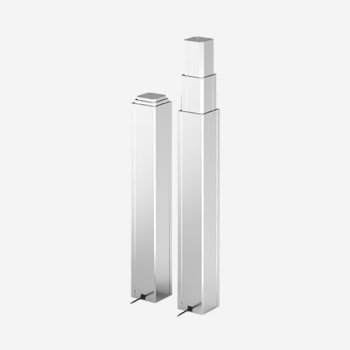

HTX3 Lifting column

Number of sections: two sections, 110*110mm square
Maximum load: 1,000N (thrust)
Speed range: 10~58MM/S
Voltage range: 12-48V DC

Five-section lifting column

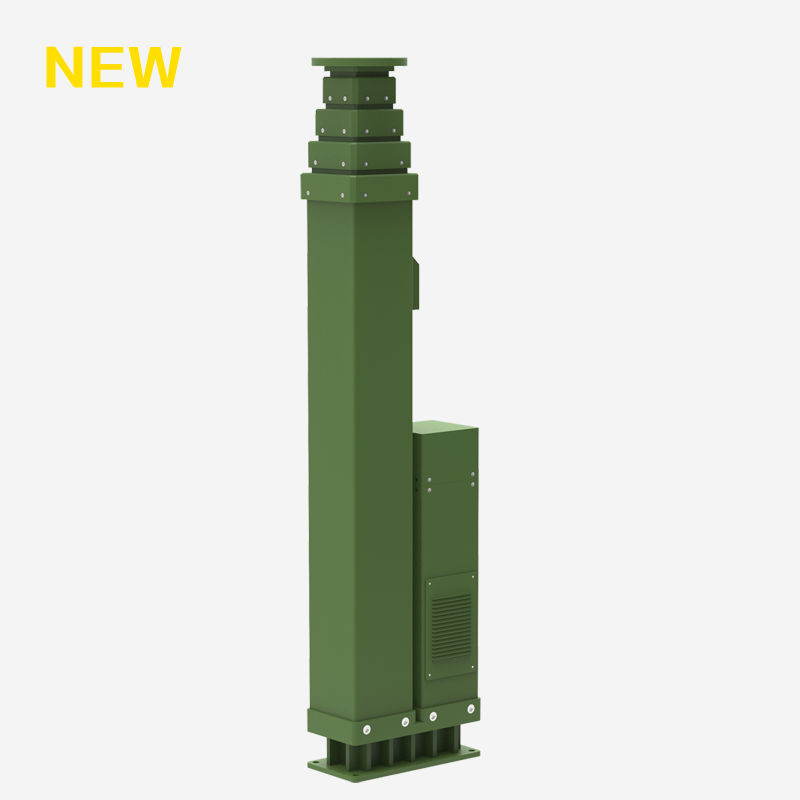

HTEM5 Five-section lifting column

Number of knots: five knots, 147*147mm square
Maximum load: 800N (thrust)
Speed range: 1.5~2.54M/Min
Voltage range: 24~110V DC\220~380V AC

Lifting column

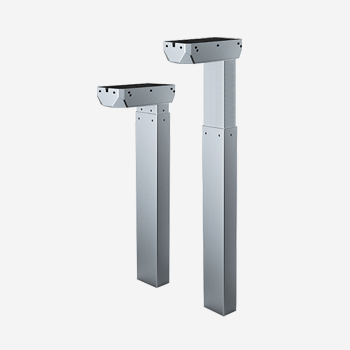

HTL81 Lifting column

Number of sections: two sections, 80*50mm rectangle
Maximum load: 800N (thrust)
Speed range: 38MM/S
Voltage range: 24V DC

Lifting column

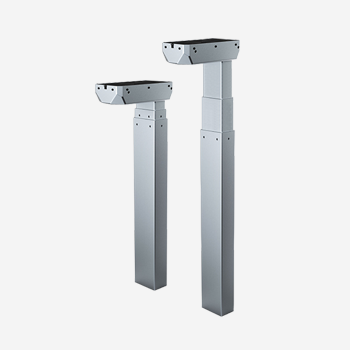

HTL82 Lifting column

Number of sections: three sections, 80*50mm rectangle
Maximum load: 800N (thrust)
Speed range: 38MM/S
Voltage range: 24V DC

Lifting column

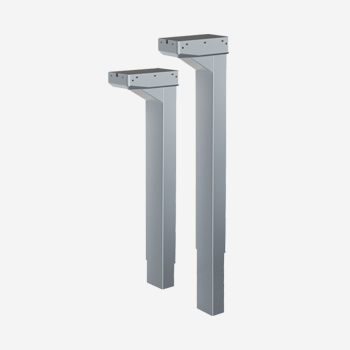

HTL83 Lifting column

Number of sections: two sections, 80*50mm rectangle
Maximum load: 800N (thrust)
Speed range: 38MM/S
Voltage range: 24V DC

Lifting column

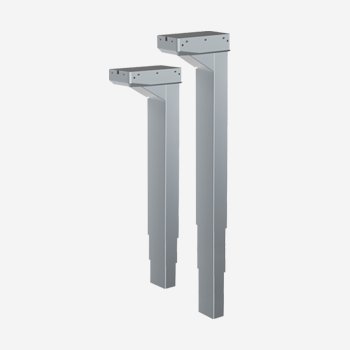

HTL84 Lifting column

Number of sections: three sections, 80*50mm rectangle
Maximum load: 800N (thrust)
Speed range: 38MM/S
Voltage range: 24V DC

Electric lifting column

HTL85 Electric lifting column

Number of sections: two sections, 70*70mm square
Maximum load: 800N (thrust)
Speed range: 38MM/S
Voltage range: 24V DC

Electric lifting column

HTL86 Electric lifting column

Number of sections: three sections, 70*70mm rectangle
Maximum load: 800N (thrust)
Speed range: 38MM/S
Voltage range: 24V DC
