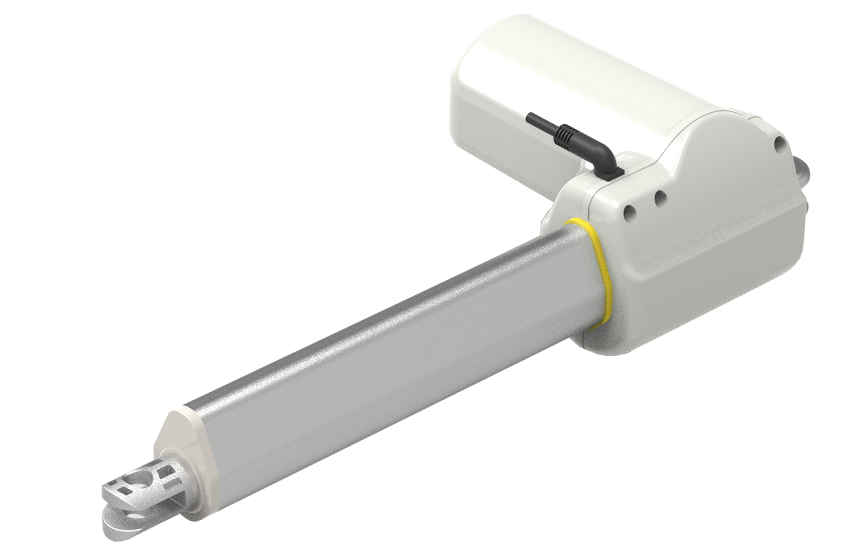

Ge Ming HTB60F linear actuator is designed for various application, such as furniture, dental chair, medical bed and so on. The linear actuator is powerful and quiet that is an ideal product for nursing departments such as hospital beds.

The quality of the HTB60F provided by GeMinG ensure that you have a long-life, maintenance-free product.


General Features

  • Voltage of motor: 12V DC,24VDC
  • Maximum load: 8000N(Push),4000N(Pull)
  • No-Load Speed:5-34mm/s
  • Full-Load Speed:3-23mm/s
  • Stroke: 100~600mm
  • Minimum dimensions: Stroke+ 175 mm
  • Stroke+ 190 mm (S>400mm)
  • Color: Silver gray or black
  • IP rating: IP66W
  • Operational temperature range: -25°C~+65°C
  • Higher duty cycle (25%),
  • Noise Level:≤52db
  • Other options: Hall sensor, control system
  • High-strength N steel housing protects motors and gears
  • Built-Limit function (not adjustable)





Model Selection
HTB60F Series Load±10%(N) Speed±2(mm/S)
Standard Motor(2600RPM)
Load 6,000 4,500 3,000 2,300 1,500 1,000
Speed 4 6 8 12 18 22
Standard Motor(3400RPM)---Updating, not available now
Load 8000 6000 5000 3500 2500 2000 1000
Speed 4 5 7 15 20 27 34
HTB60F Series Stroke ±2(mm) Mounting dimensions±2(mm)
Stroke 50 100 150 200 250 251~399 400 401~599 600
Size 225 275 325 375 425 stroke+175mm 590 stroke+190mm 790

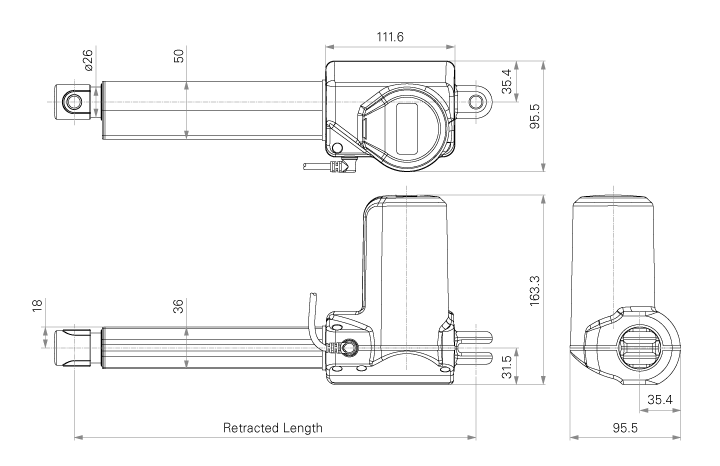

Drawing Standard Dimension (mm)
