HTA17

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

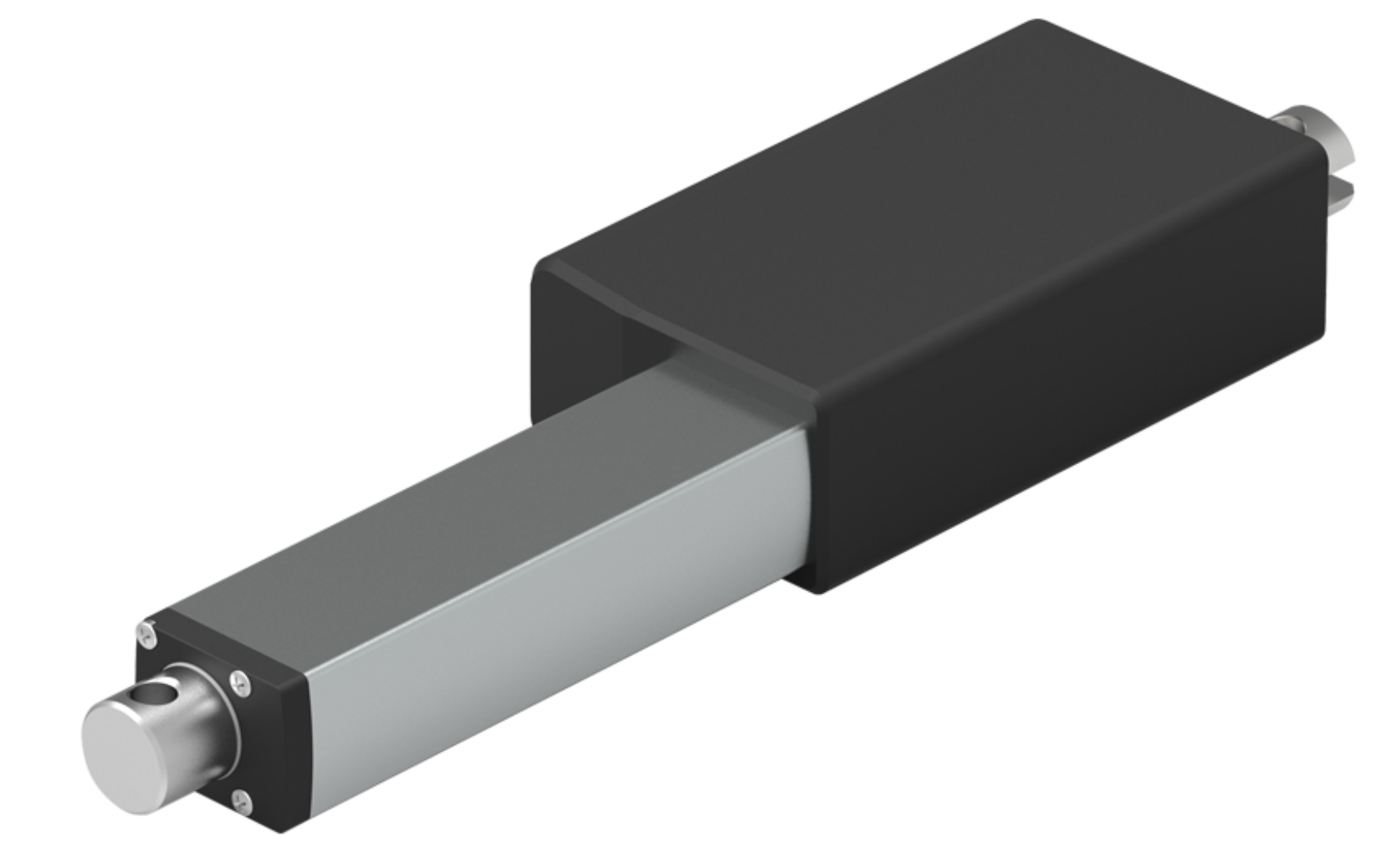

HTA17 miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP68 Alternatively, TA Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..



General Features


  • Voltage of motor: 12V DC, 24V DC 36V DC,
  • Maximum load: 3,500N in pull/push
  • Stroke: 70~800mm
  • Minimum dimensions: Stroke + 130 mm (S<300mm)
  •                                           Stroke + 140 mm (S>300mm)
  • Color: Silver gray or black
  • IP rating: IP66
  • Operational temperature range: -40°C~+55°C
  • Operational temperature range at full performance: -40°C~+55°C
  • Higher duty cycle (25%),
  • Other options: Hall sensor
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)

Model Selection










HTA17 Series Load±10%(N) Speed±2(mm/S)













Load 3,500 2,000 1,500 1,000 700 000


Speed 4 8 12 16 24 000








HTA17 Series Stroke ±2(mm) Mounting dimensions±2(mm)












Stroke 50 100 150 200 250 300 350 400 450
Size 180 230 280 330 380 430 490 540 570




















Drawing Standard Dimension (mm)



Code selection:  HTA17 - voltage - speed - stroke - minimum installation size / maximum installation size - load
