Industrial Motion

PDF Data Sheet

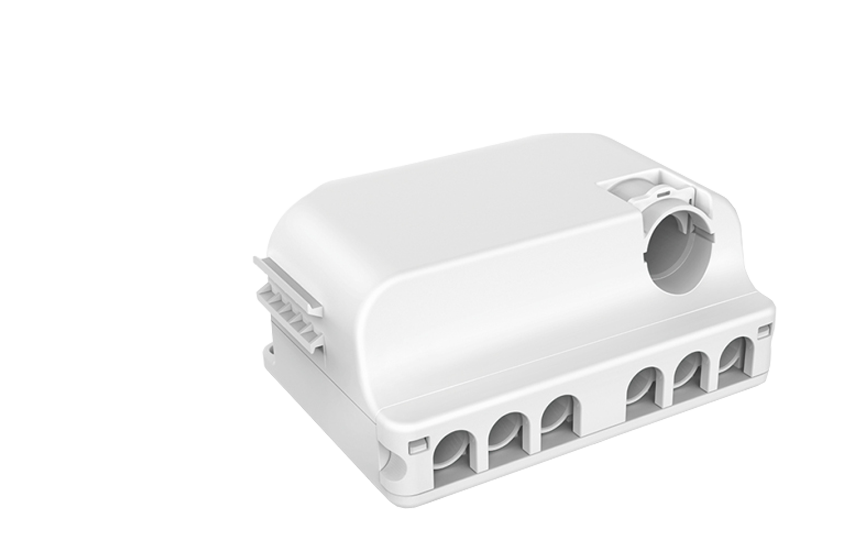

The HTY4 control box is suitable for one to four GeMinG linear actuators of any type. Built-in maximum 10A switching power supply, support 100~240V input voltage. In addition, the HTK104Y has built-in anti-collision smart detection to protect the linear actuator from the danger of collisions during lifting due to external forces. It also has a built-in wireless remote control that allows the use of a wireless remote control to control the linear actuator.


Product Features


• Built-in transformer type: switch type • Input voltage: 100 ~ 240VAC • Maximum output: 32V DC, 2.5A • Plug: support European regulations, US regulations, Australian regulations, British regulations, Japanese regulations • Number of pushers that can be connected: 1-4 • Color: black or off-white • Overcurrent protection: shunt protection, total protection optional • Other options: built-in (anti-collision intelligent detection), wireless remote control function • Designed for medical control applications • Supports simultaneous operation of two linear actuators

Use

• Working duty cycle: 10%; continuous use for 2 minutes, rest for 18 minutes • Ambient temperature: +5°C~+40°C • Passed IEC60601, UL, KC certification
