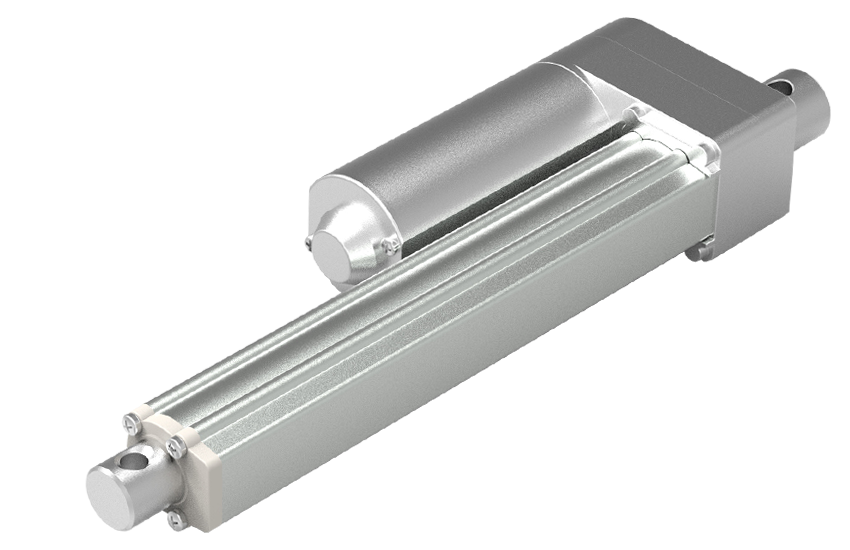

HTA28H

Series

Linear Actuator

Product Features

Industrial Motion

Document Downloads

PDF Data Sheet

3D Model

HTA28H miniature linear actuator is One section of industry, agricultural machinery, construction, clean sweeping vehicles, ships, cargo and other windows automatic control,Application Design of actuators. The products are small-capacity, compact design, protection grade IP66 Alternatively, HT Series linear actuator is One kind of power-driven device, its installation is not the terrain. Distance limitations, the ideal product to replace hydraulic, pneumatic, both to save energy, But also through the microcomputer control, easy to automate..



General Features

  • Voltage of motor: 12V DC, 24V DC, 36V DC, 48V DC,
  • Maximum load: 4,500N in push
  • Stroke: 10~600mm
  • Minimum dimensions: Stroke + 125 mm (limited to 300 mm stroke or less)
  •                                Stroke + 140 mm (300 mm stroke above)
  • Color: Silver gray or black
  • IP rating: IP66D
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • duty cycle: 2min on, 18min off
  • Other options: Hall sensor
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)





Model Selection
HTA28H Series Load±10%(N/lbs) Speed±2(mm/S)
Max Dynamic Load:N(lbs) 4,500 2,200 1,600 1,000 800 00
Max Static Load:kN(lbs) 4,500 2,200 1,500 1,000 800 00
No-Load Speed: mm/s 3 6 9 12 16 00
Full-Load Speed: mm/s 2.3 4.8 7 9.5 14.3 00
HTA28H Series Stroke ±2(mm) Mounting dimensions±2(mm)
Stroke:mm 50 100 150 200 250 300 350 400 450
Minimum installation size:mm 175 225 275 325 375 440 490 540 590
Actuator Weightkg 1.1 1.2 1.3 1.4 1.5 1.8 1.9 2.1 2.3

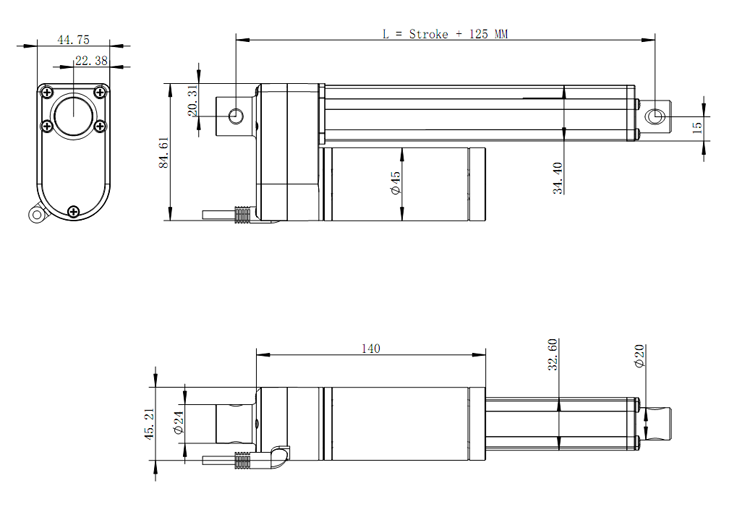

Drawing Standard Dimension (mm)

Code selection:  HTA28H - voltage - speed - stroke - minimum installation size / maximum installation size - load
