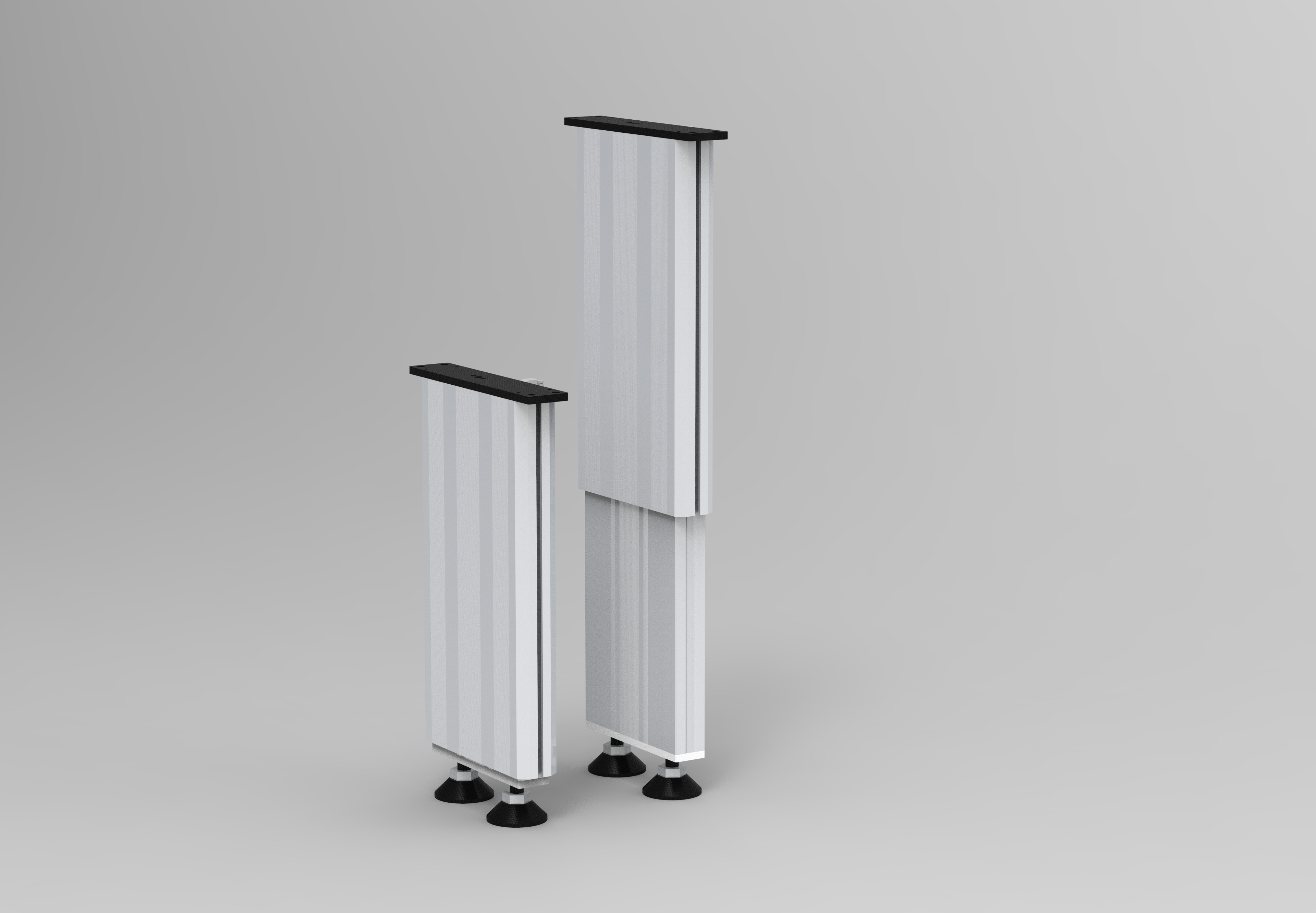

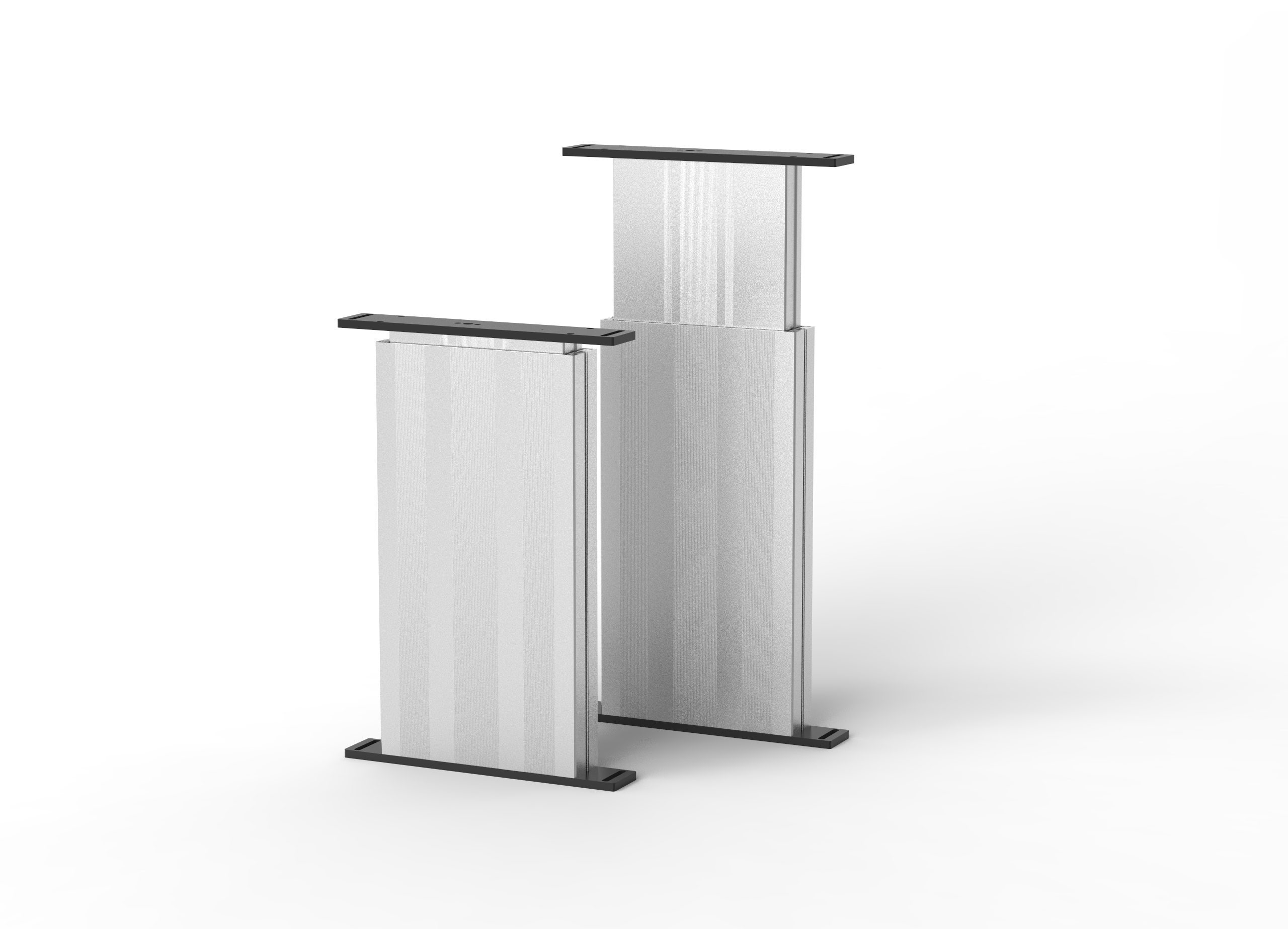

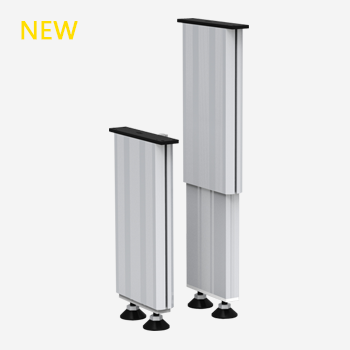

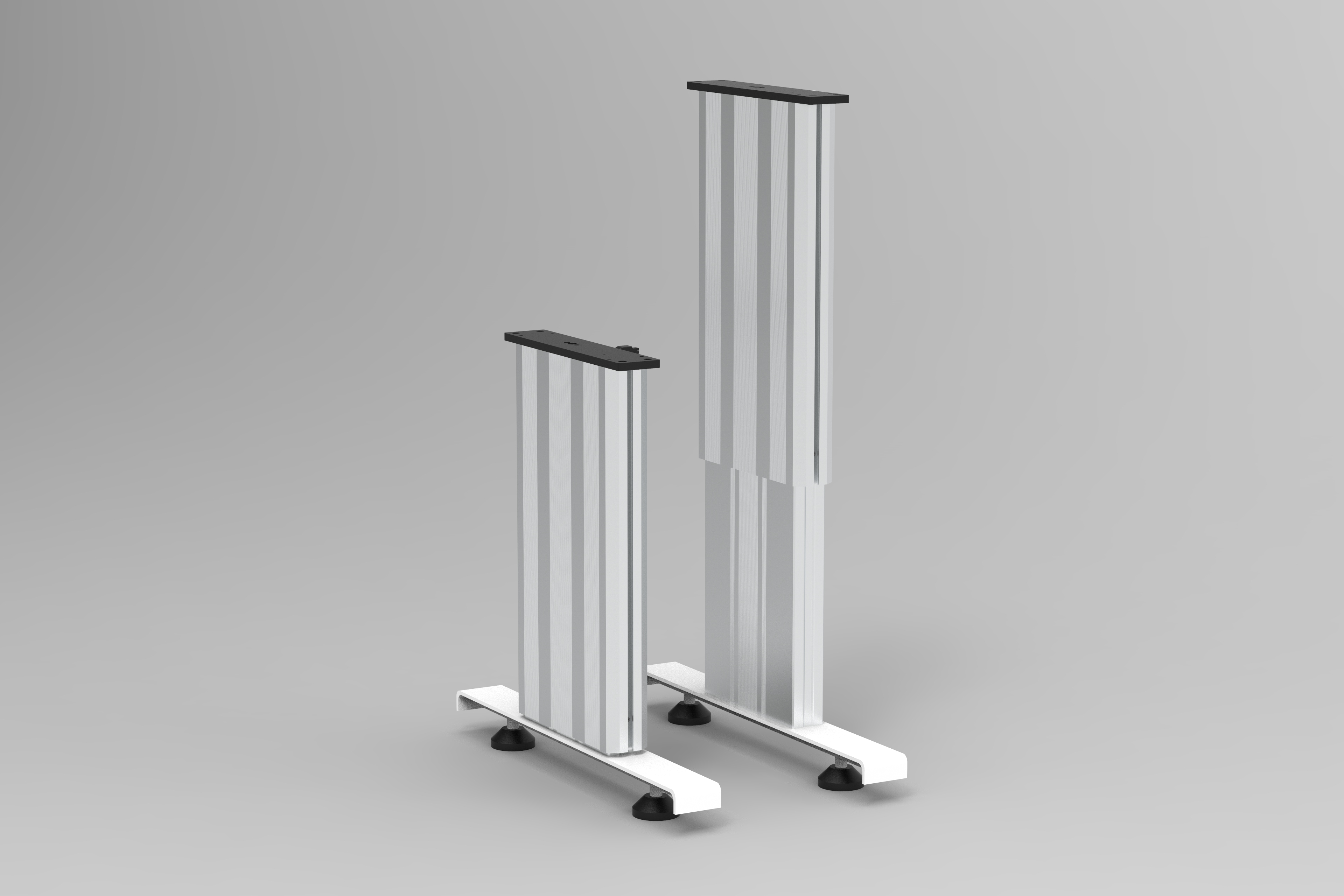

HTD2-lifting column-electric furniture medical desk lifting column manufacturersElectric Lifting Column-Wireless remote controller for mobile phone, special controller for office lifting column, lifting column. As long as the putter or lifting column is within the range of Wifi, the phone can support 4G operation, and the HTD2 lifting column has become a self-supporting, compact, and universal lifting solution.
HTD2 linear actuator column (GeMinG) one Column product development for medical and work environments, such as hospital beds, nursing home beds, treatmentunits and height='auto' rea adjustable desk applications. The two outer tube HTD2 formula canprovideastable operation of the lift, and can provide minimal dimensions and longstroke selection ... and so on ...
(HTD2-C)
General Features
(HTD2-S)
(HTD2-P)
Maximum load: 2,000N ~ 6000N,
Maximum speed at full load: 22mm / s (load 1,000N)
The slowest speed at full load: 4.5mm / s (load 6,000N)
Stroke: 200 ~ 600mm
Minimum dimensions: Stroke + 180 mm (S ＜ 400mm)
Stroke + 200 mm (S> 400mm)
Color: Silver gray
IP rating: IP54
Operational temperature range: -25 ° C ~ + 65 ° C
Higher duty cycle (25%),
Other options: Hall sensor
High strength metallic zinc alloy housing protects motor and gear
Built-in limit switches (not adjustable)
