1. Servo High-Precision Synchronous Control Technology
* Self-developed multi-stage ball screw synchronization algorithm and nonlinear load adaptive control model, achieving multi-column synchronization error as low as ±0.1~±0.5mm; servo-based models achieve repeatability of ±0.01mm, far exceeding ordinary electric lifting bollards, suitable for high-precision scenarios such as humanoid robots and precision testing equipment.

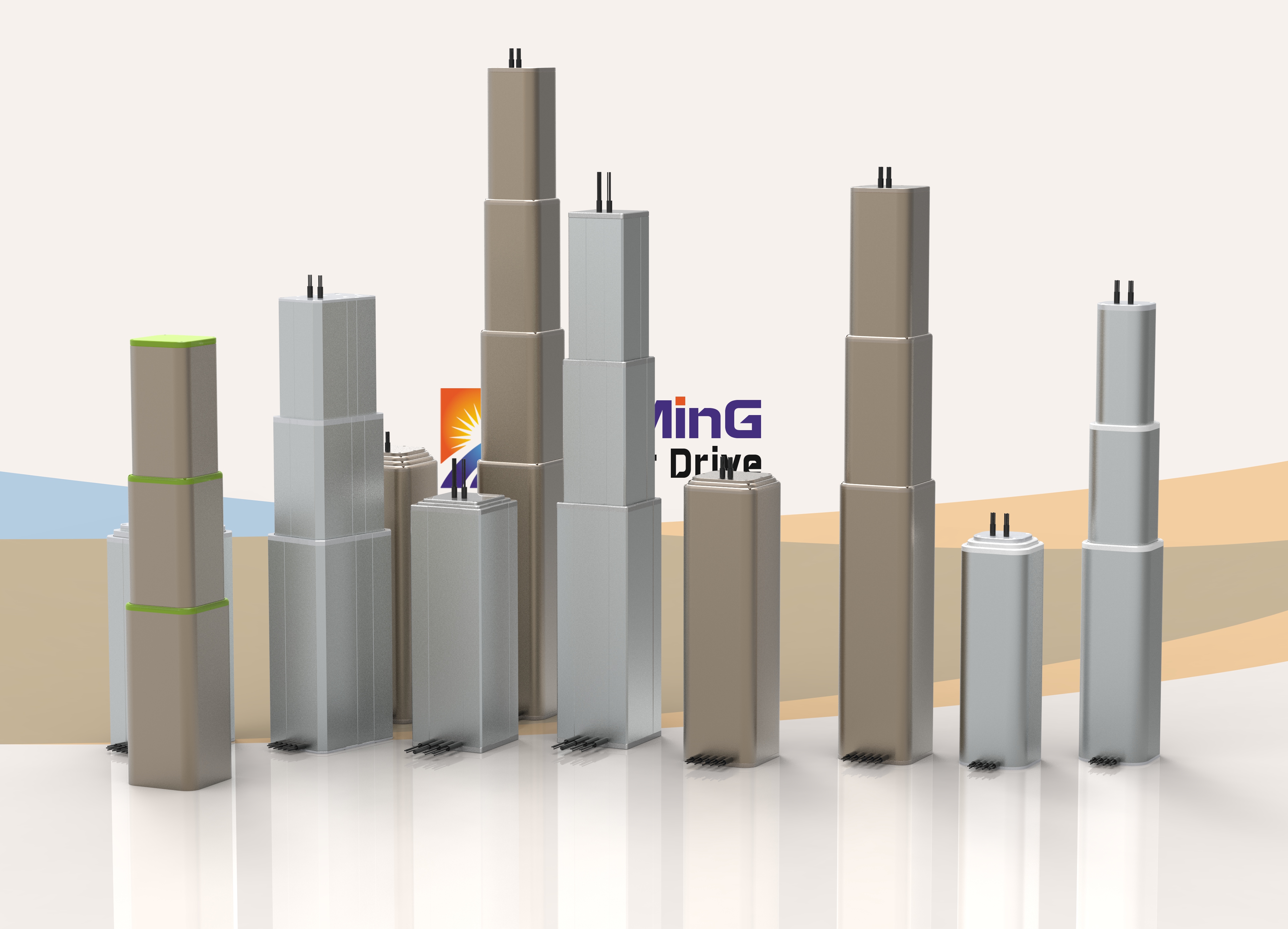

2. Multi-Section Telescopic Lightweight High-Rigidity Structure
* 2-6 section integrated design, using 6063 aluminum alloy one-piece extruded outer tube and roller/ball screw drive, resulting in a shorter body and smaller installation space for the same stroke; built-in POM wear-resistant and noise-reducing bushings provide superior deformation and bending rigidity compared to ordinary lifting bollards on the market, supporting customized ultra-large loads of 40-50 tons. 3. Fully Self-Developed Drive and Control System: Servo motors, Hall effect sensors, and drive motherboards are all independently developed, natively supporting CANopen and Modbus bus communication. Open API interfaces allow for integration with robot controllers, PLCs, and vision inspection systems without additional adapter boards, resulting in lower secondary development costs.
4. Mechanical Self-Locking Safety Structure: A screw self-locking + electromagnetic double-locking design eliminates the risk of slippage during power outages or shutdowns; no settling even under full load, unlike hydraulic lifting columns which suffer from oil leakage, pressure relief, and slump. It also eliminates hydraulic oil contamination, making it suitable for laboratory, medical, and robotic cleanroom environments.
1. Wide Load Coverage: Covers a wide range from light loads of 100kg to industrial heavy loads of 50 tons; the servo robot series boasts a maximum single-column thrust of 12000N, with heavy-duty engineering lifting models reaching 50 tons, representing an 18% increase in load capacity compared to competitors of the same volume. 2. Quiet and Stable Operation: Internal noise reduction structure + precision-ground lead screw, no-load noise ≤50dB, full-load operation ≤50dB, suitable for quiet environments such as hospitals, laboratories, companion robots, and office workstations.
3. Ultra-Long Service Life: The entire machine has undergone aging tests of ≥300,000 cycles with no significant performance degradation, and the failure rate is controlled within 0.3%. The lead screw uses a quenched and wear-resistant process, coupled with self-lubricating bushings, eliminating the need for regular lubrication maintenance and reducing long-term maintenance costs.
4. Wide Temperature Range and High Environmental Adaptability: Standard IP54, high-end models IP65 protection; operating temperature -40℃～+85℃, passed rigorous tests for salt spray, damp heat, and sandstorms, suitable for harsh working conditions such as coastal radar, special outdoor vehicles in northern regions, open-air sunrooms, and oilfield testing equipment.
III. Advantages of Customized and Rapid Delivery
1. Modular and Standardized Platform: Load, stroke, number of sections, voltage, communication protocol, and mounting flange are all modularly selectable. Non-standard solutions can be completed in 5 working days for drawing and prototyping, resulting in short delivery cycles for bulk orders.
2. Full-Dimensional Non-Standard Customization Capabilities: Supports customized strokes from 100mm to 2000mm, 24V/48V DC/220V AC power supply, external servo motors, external encoders, height='auto' rea memory, synchronous linkage systems, and special-sized square/round columns; supports OEM/ODM manufacturing and joint R&D based on provided drawings (JDM).
3. One-Stop Solution: Not only are lifting columns sold, but complete sets including servo drives, control handles, synchronous control systems, and mounting brackets can be delivered, eliminating the need for customers to piece together parts from multiple manufacturers.
IV. Product Comparison: Advantages of Hydraulic/Ordinary Electric Columns
1. Compared to Ordinary DC Push Rod Lifting Columns: Servo closed-loop control, adjustable speed 0-200mm/s, smooth start/stop buffer, stable multi-column synchronization, 100-fold improvement in positioning accuracy, intelligent bus linkage, compatible with robots and high-end automated equipment.
V. Production and Quality Control Advantages
1. Full-Supply Chain In-House Production: 8500㎡ self-owned factory, precision CNC machining, lead screw grinding, motor assembly, and whole-machine aging testing are all completed in-house. Components are not outsourced, ensuring full quality traceability. Possesses over 20 invention patents for transmission structures and servo control, and is ISO9001, CE, and RoHS certified.
2. Rigorous Factory Testing: Each product undergoes full-load lifting cycle, high and low temperature aging, salt spray, synchronization accuracy, and self-locking settling tests before being released to the market. Supports third-party performance retesting.
3. Backed by Leading Projects: We provide bulk supply to CRRC, CGN, Sinopec, Chengli Special Vehicles, humanoid robot manufacturers, medical CT equipment providers, and radar antenna equipment suppliers. We have long served high-barrier-to-entry industries such as industrial, rail transportation, energy, and scientific research robotics. Our project stability has been proven by the market over a long period, with a customer renewal rate exceeding 90%.
VI. Industry-Specific Adaptability Advantages (Exclusive Advantages for Niche Markets)
1. Humanoid Robots: Dedicated multi-section short-body lifting column for torso lifting, low center of gravity, high-speed response, native bus interface with robot main controller, smooth and vibration-free height='auto' rea adjustment;
2. Industrial Automation/Inspection Equipment: High-precision synchronization, memory positioning, low vibration, compatible with machine vision, laboratory benches, and tooling lifting modules;

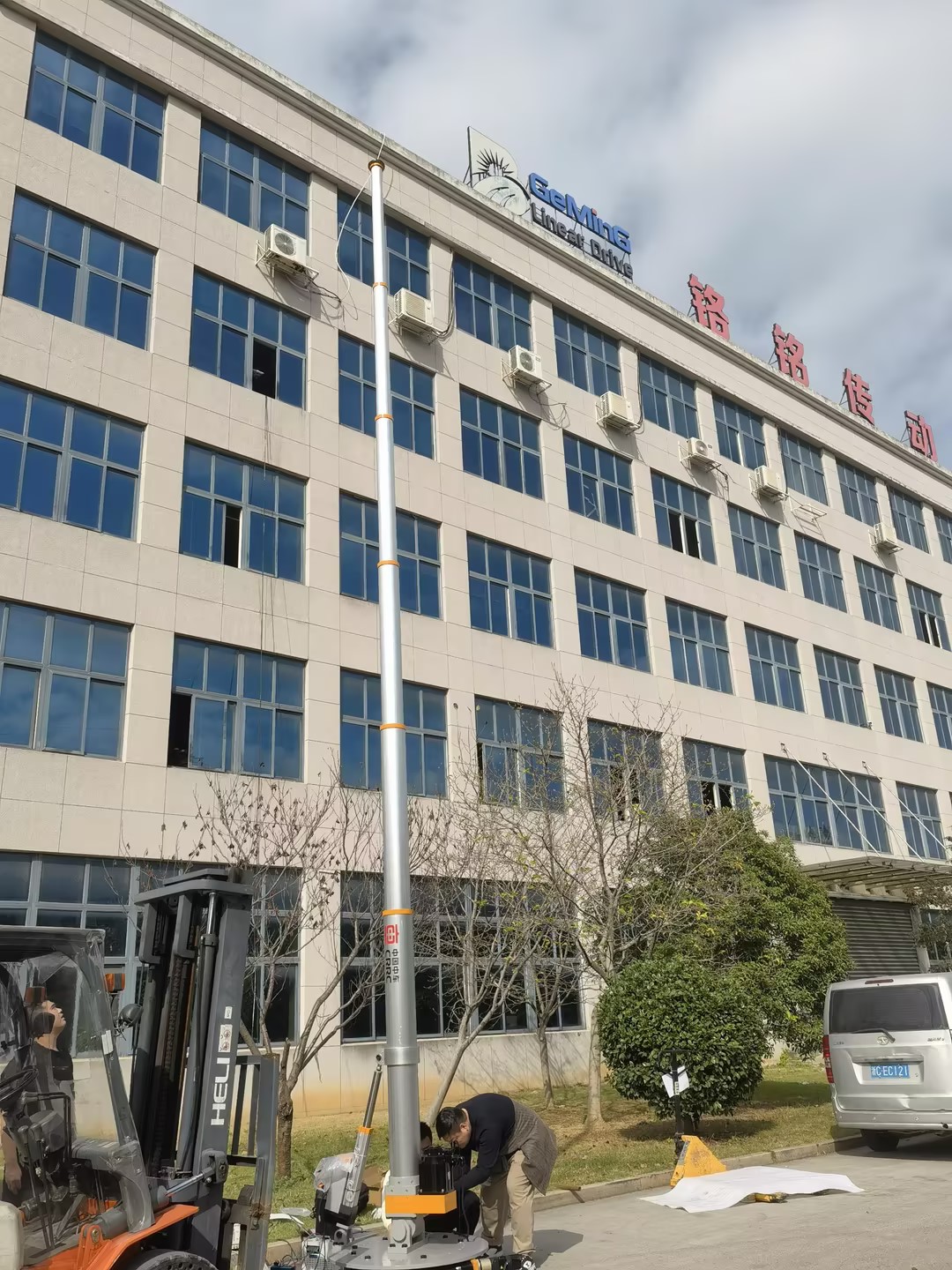

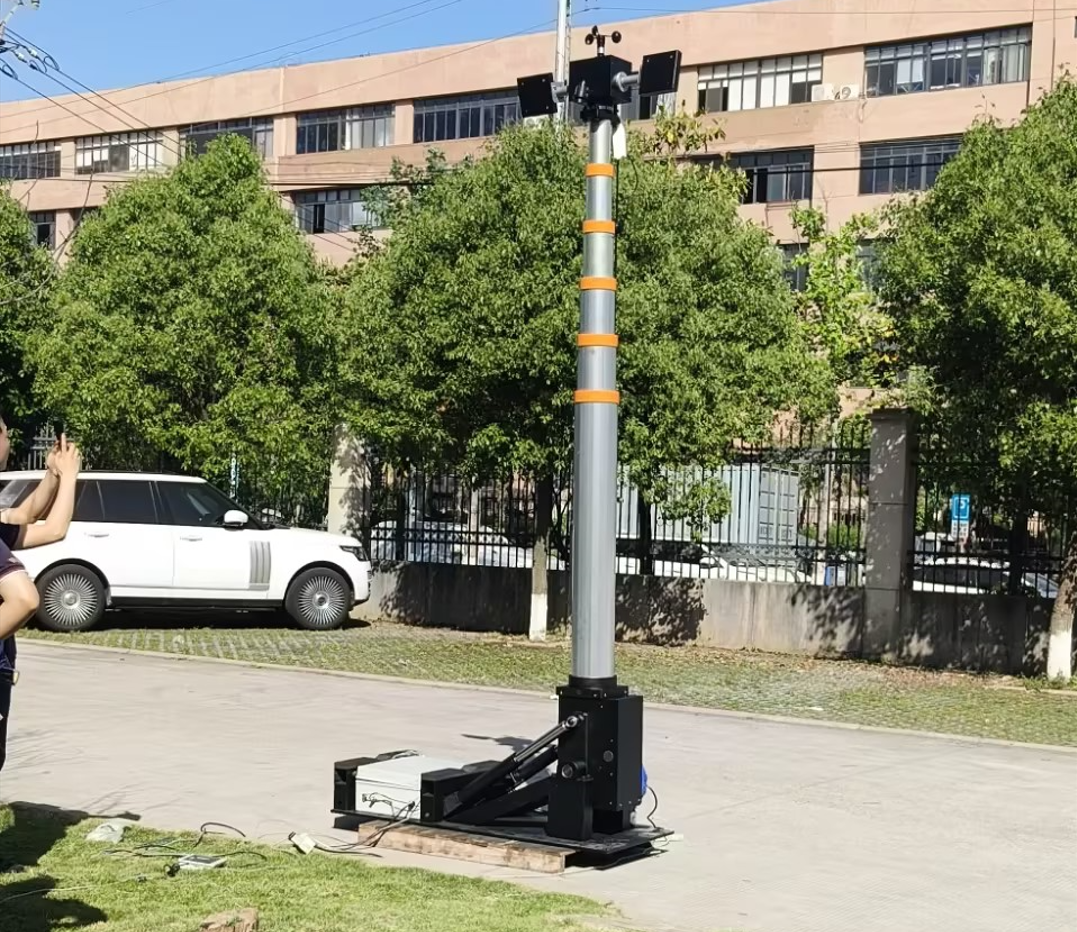

3. Special Vehicle/Radar/Outdoor Equipment: IP67 waterproof, wide-temperature salt spray resistant, high-load self-leveling, compatible with vehicle radar, inspection vehicle outriggers, and sunroom lifting systems;
4. Medical/Silent Equipment: Low noise, oil-free, stable self-locking, compatible with treatment beds, rehabilitation robots, and electric operating tables.
VII. After-sales Service Advantages
1. Long warranty period for the whole machine, with separate extended warranties for core components such as the lead screw and servo motor;
2. Provides remote electrical control debugging and on-site installation technical guidance;
3. Provides one-on-one support from selection engineers, with free initial working condition calculations and parameter matching.
