| Advantages of HTA3 The linear lifting column with a three-section design is GeMinG's column-type product development designed for medical and working environments, such as hospital beds, nursing beds, treatment units and height-adjustable desktop applications. The cooperation of two or more HTA3 can provide the best operation of linear synchronous lifting, which is suitable for industrial environments, such as the design of workbenches, screens or TV lifting columns. And can provide the smallest installation size and longer travel options. And can provide minimum size and long stroke options... etc., | |||||||||
| Product Features | |||||||||
|
|||||||||
| 產品數據表 | |||||||||
| HTA3 Series | 负载 ±10％（N） | 速度 ±2（mm/S） | |||||||
| 最大负载(N) | 4,000 | 2,000 | |||||||
| 空载速度(MM/S) | 17.5 | 35.0 | |||||||
| 负载速度(MM/S) | 14.5 | 28 | |||||||
| HTA3 Series | 行程 ±2（mm) | 缩回长度 ±2（mm） | |||||||
| 标准行程(MM) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| 缩回长度(MM) | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 |
| 产品重量(KG) | 5.9 | 6.8 | 7.7 | 8.6 | 9.5 | 10.4 | 11.3 | 12.2 | 13.1 |

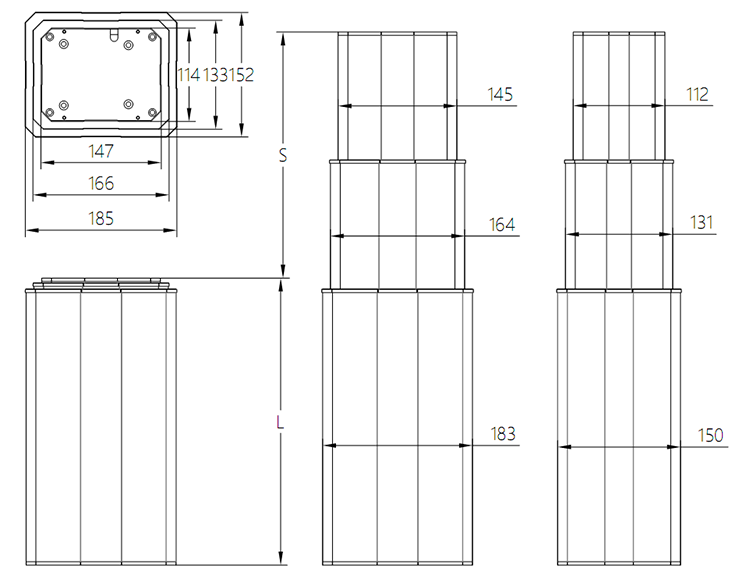

| 工程圖 | 规格標準尺寸 (mm) | ||||||||
|
|||||||||
|
S: 行程 L: 縮加安裝尺寸 L=行程 / 2 +200MM |
|||||||||
| Lifting column | Lifting column | Lifting column | Lifting column | Lifting column | Lifting column | Lifting column | Lifting column | Lifting column | Lifting column |
| 型號代碼選項規律： | HTA3 - 电压- 速度 - 行程 - 缩回最小高度 / 伸出最高高度 - 负载 - 安装方式 | ||||||||
