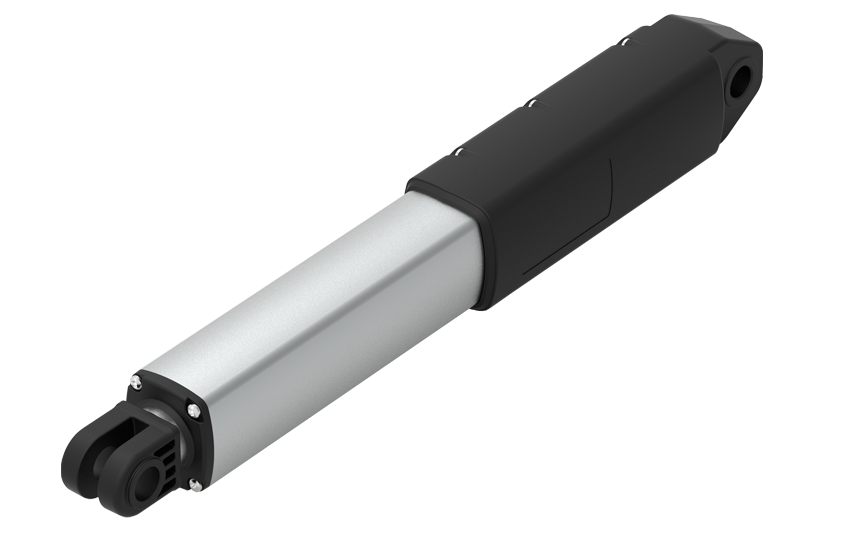

HTK36 linear actuator is a pen-type actuator with planetary reduction gearbox, which is widely used in the motion and function control of various intelligent devices. It has compact size to meet the space requirements of various small and medium-sized devices. This model has built-in limit switches, compact size, small volume, large thrust, and a maximum rated thrust of 1000N. It is easy to install, compact and vertically solid, suitable for use in environments with limited space, and can be used in industry, home, automobile and other intelligent devices.

Product Features

Voltage: Motor Options: Maximum thrust (pull): Slowest speed under load: Maximum speed under load: Minimum installation size: Dynamic lateral moment: Static lateral moment: color: Voice: Applicable temperature range: Protection level: Screw selection: Switch Type: Signal options: Control options: Safety certification: High-strength metal zinc alloy gearbox and housing,	12V , 24V DC DC Motor 1,200 N / 1,200 N 5.0mm / s (load 1,200N) 34 mm / s (load 300N) Travel + 165mm 20Nm 30Nm Silver gray, black 50~56 DB -35°C ~ +65°C IP54 Trapezoidal screw Built-in limit switch, * * Comply with ISO9001-2008, CE and RoHS compliant,

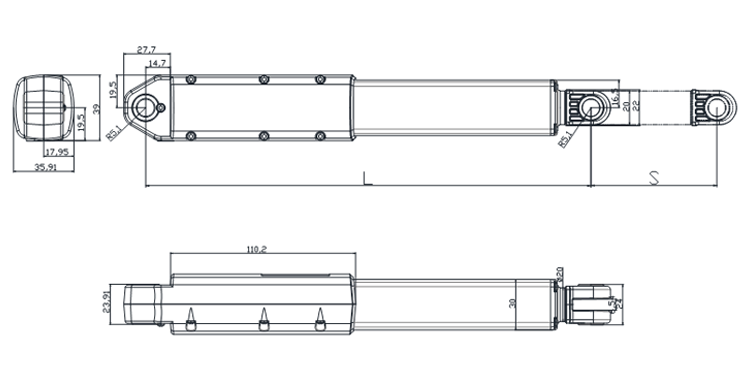

Dimensional Drawing	Specifications Standard size (mm)

					S: Stroke
					L: Initial installation dimensions
					L=Stroke +165MM
Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator

Model code option rules:	HTK36 - Voltage - Speed - Stroke - Minimum retracted length - Load - Other options
